Product Overview

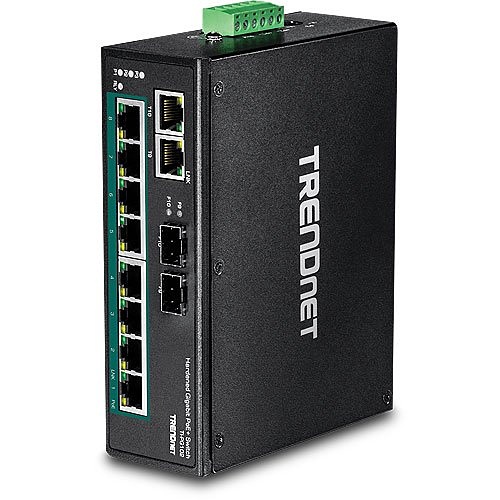

TRENDnet's 10-Port Industrial Gigabit PoE+ DIN-Rail Switch, model TI-PG102, has eight gigabit PoE+ ports with a 240 W PoE power budget, plus two gigabit RJ-45 / SFP shared ports. Users are able to connect eight PoE+ devices to the switch, while still providing two gigabit ports for additional network connections. The switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° - 75°C (-40° - 167°F) for industrial environments.
PoE Power
A 240 W PoE+ power budget supplies up to eight Power over Ethernet devices with PoE+ power.
Fault Tolerance
Features dual redundant power inputs with output alarm relay.
Industrial Hardened Design
Equipped with a rugged IP30 rated housing, designed to withstand a high degree of vibration, shock, and operate within a wide temperature range of -40 - 75°C (-40 - 167°F).
ately (models: TI-S24048 / 48VDC3000)
General Information
Name : TRENDnet TI-PG102 10-Port Industrial Gigabit PoE+ DIN-Rail Switch, 20Gbps , TRENDnet
Category : Network Switches
UPC Code : 710931160932
Country of Origin : Taiwan, Province of China. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : TQ-TIPG102
Brand Name : TRENDnet
Manufacturer : TRENDnet
Manufacturer Part Number : TI-PG102
NDAA Compliant : Yes
Product Condition : New
Product Model : TI-PG102
Product Name : 10-Port Hardened Industrial Gigabit PoE+ DIN-Rail Switch
Product Type : Ethernet Switch
Weight (Approximate) (g) : 648.637
Technical Information
Media Type Supported : Optical Fiber, Twisted Pair
I/O Expansions
Expansion Slot Type : SFP
Number of SFP Slots : 2
Number of Total Expansion Slots : 2
Shared SFP Slot : Yes
Interfaces/Ports
Modular : Yes
Port/Expansion Slot Details : 2 x Gigabit Ethernet Expansion Slot, 2 x Gigabit Ethernet Network, 8 x Gigabit Ethernet Network
Media & Performance
Network Technology : 1000Base-T, 1000Base-X
Network & Communication
Ethernet Technology : Gigabit Ethernet
Layer Supported : 2
Physical Characteristics
Depth : 10" (254 mm)
Depth (mm) : 254
Form Factor : DIN Rail Mount, Wall Mount
Height : 3" (76.20 mm)
Height (mm) : 76.2
Weight (Approximate) : 648.6 g
Width : 5" (127 mm)
Width (mm) : 127
Power Description
Power Source : Power Supply
Redundant Power Supply Supported : Yes
Product Information
Length : 6.10" (154.94 mm)
Warranty
Limited Warranty : Lifetime
Miscellaneous
Country of Origin : Taiwan
Package Contents : <ul> <li>10-Port Industrial Gigabit PoE+ DIN-Rail Switch</li> <li>Quick Installation Guide</li> <li>Removable Terminal Block</li> <li>DIN-rail and Wall Mount Kit</li> </ul>
TAA Compliant : Yes
