Product Overview

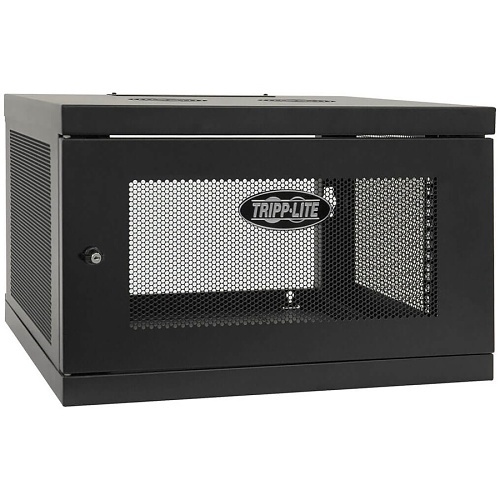

The SRW6UKD SmartRack® 6U Low-Profile Switch-Depth Knock-Down Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds.
The front door locks securely to help prevent damage, tampering and theft. The front, top, bottom and side panels are vented, which allows air to flow freely and keep equipment cool. The reversible front door can be installed to open left or right. Convenient top and bottom ports allow easy cable routing.
The SRW6UKD comes unassembled for convenient transport and storage in confined spaces. It easily assembles in minutes using just 12 fasteners, and mounts to the wall to save valuable floor space. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 16.5 inches deep, such as network switches and patch panels.
General Information
Name : Tripp Lite SRW6UKD SmartRack Low-Profile Switch-Depth Knock-Down Wall Mount Mini Rack Enclosure, 16.5" (42cm), 200lb (90.7kg), 6U , Tripp Lite by Eaton
Category : Rack Cabinets & Frames
UPC Code : 037332191564
Country of Origin : China. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : TC-SRW6UKD
Brand Name : Tripp Lite
Manufacturer : Tripp Lite by Eaton
Manufacturer Part Number : SRW6UKD
Product Line : SmartRack
Product Model : SRW6UKD
Product Name : SmartRack SRW6UKD Rack Cabinet
Product Type : Rack Cabinet
Weight (Approximate) (g) : 13154.179
Physical Characteristics
Application/Usage : LAN Switch, Patch Panel
Depth : 17.9"
Depth (mm) : 455.676
Form Factor : Wall Mount
Height : 14.5"
Height (mm) : 367.03
Maximum Weight Capacity : 90.72 kg
Product Color : Black
Product Material : Steel
Rack Depth : 16.50" (419.10 mm)
Rack Depth (mm) : 419.1
Rack Height : 6U
Rack Width : 19" (482.60 mm)
Rack Width (mm) : 482.6
Static/Stationary Weight Capacity : 90.72 kg
Static/Stationary Weight Capacity (g) : 90718.474
Weight (Approximate) : 13.15 kg
Width : 23.6"
Width (mm) : 600.202
Warranty
Limited Warranty : 5 Year
Miscellaneous
Assembly Required : Yes
Country of Origin : China
Environmental Certification : RoHS
Environmentally Friendly : Yes
Features : Cable Management
